Magnavolt Battery MSDS
SLA12-9 12V 9 Ah Sealed Lead Acid Battery

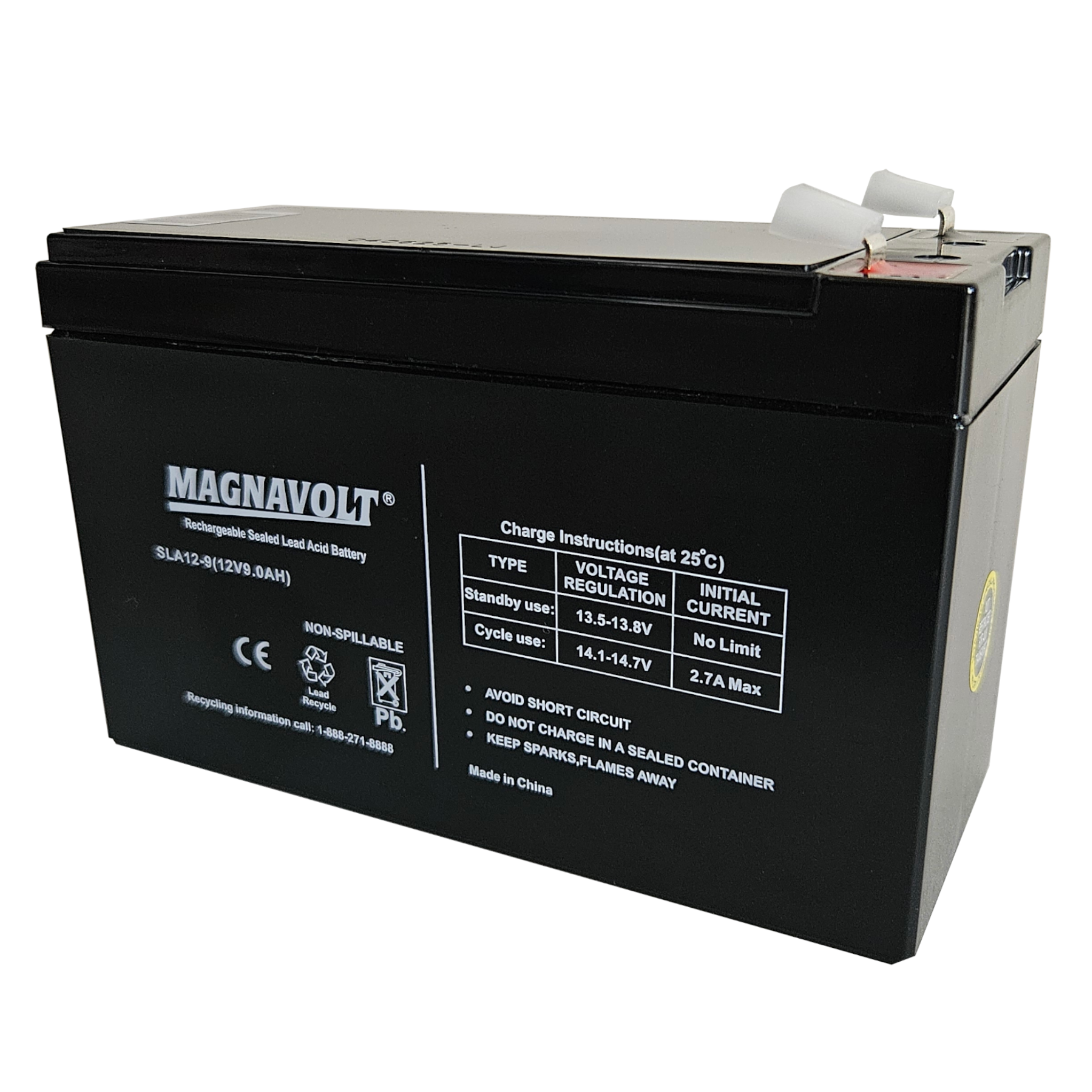

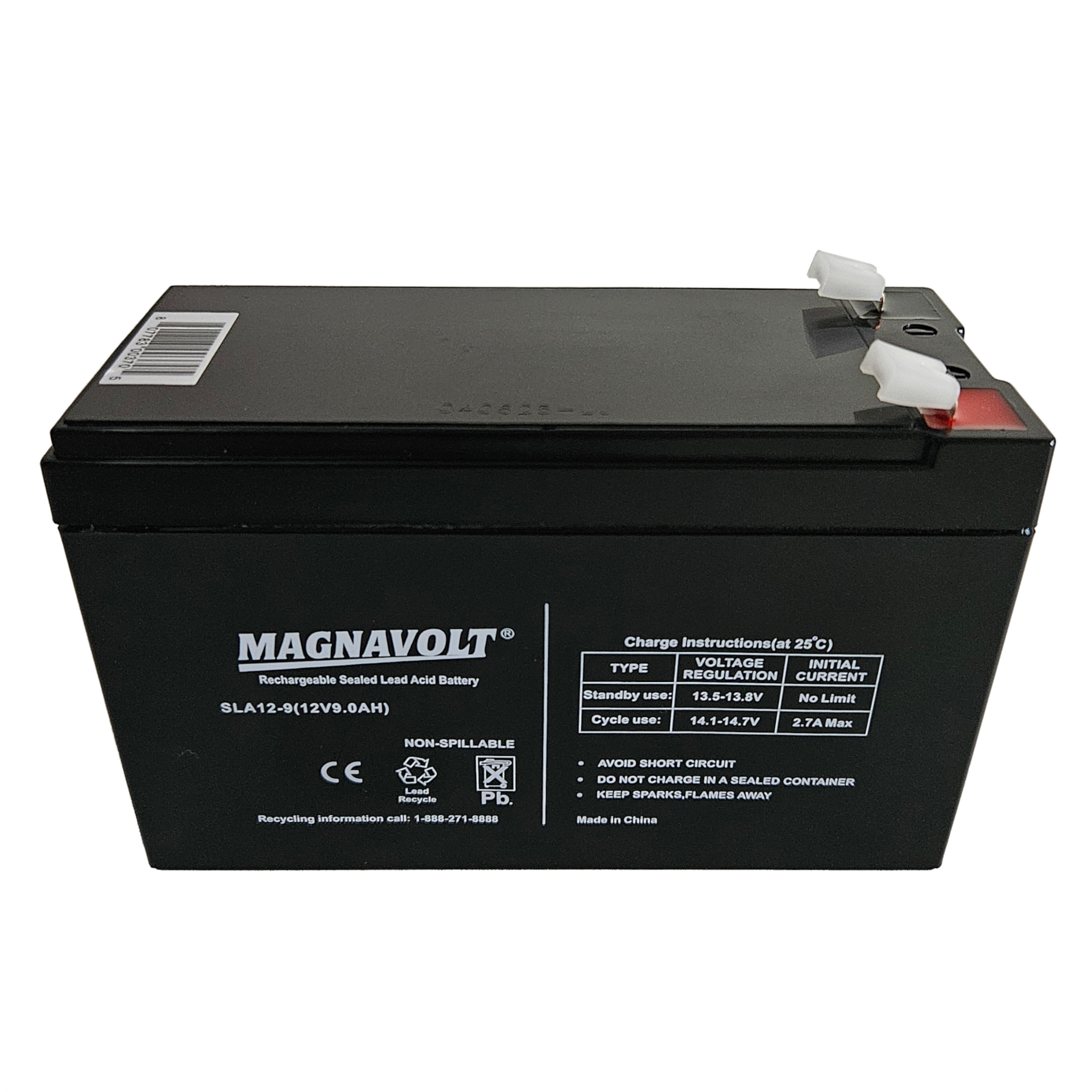

![Magnavolt SLA12-9 Battery]()

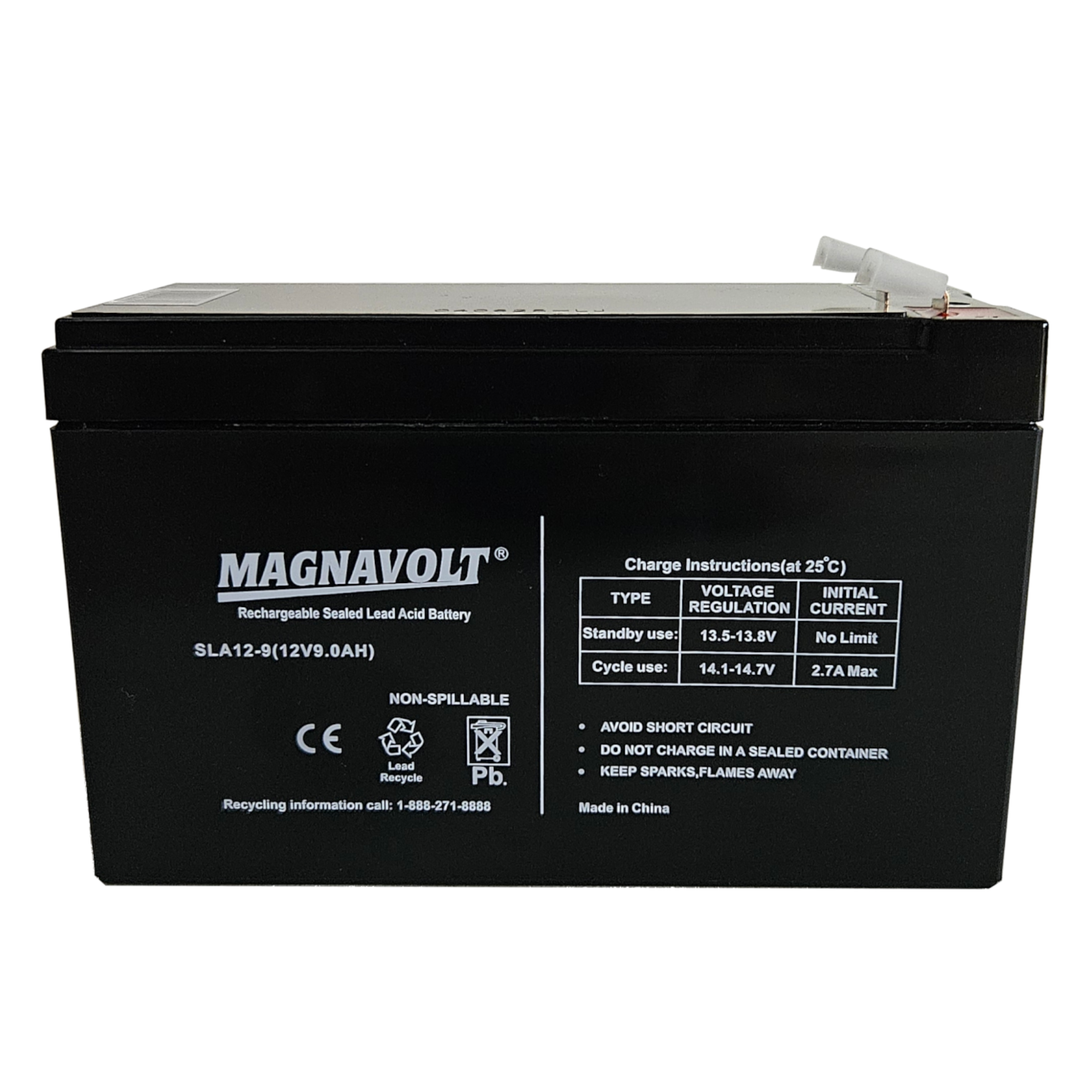

![Magnavolt SLA12-9 Battery Front]()

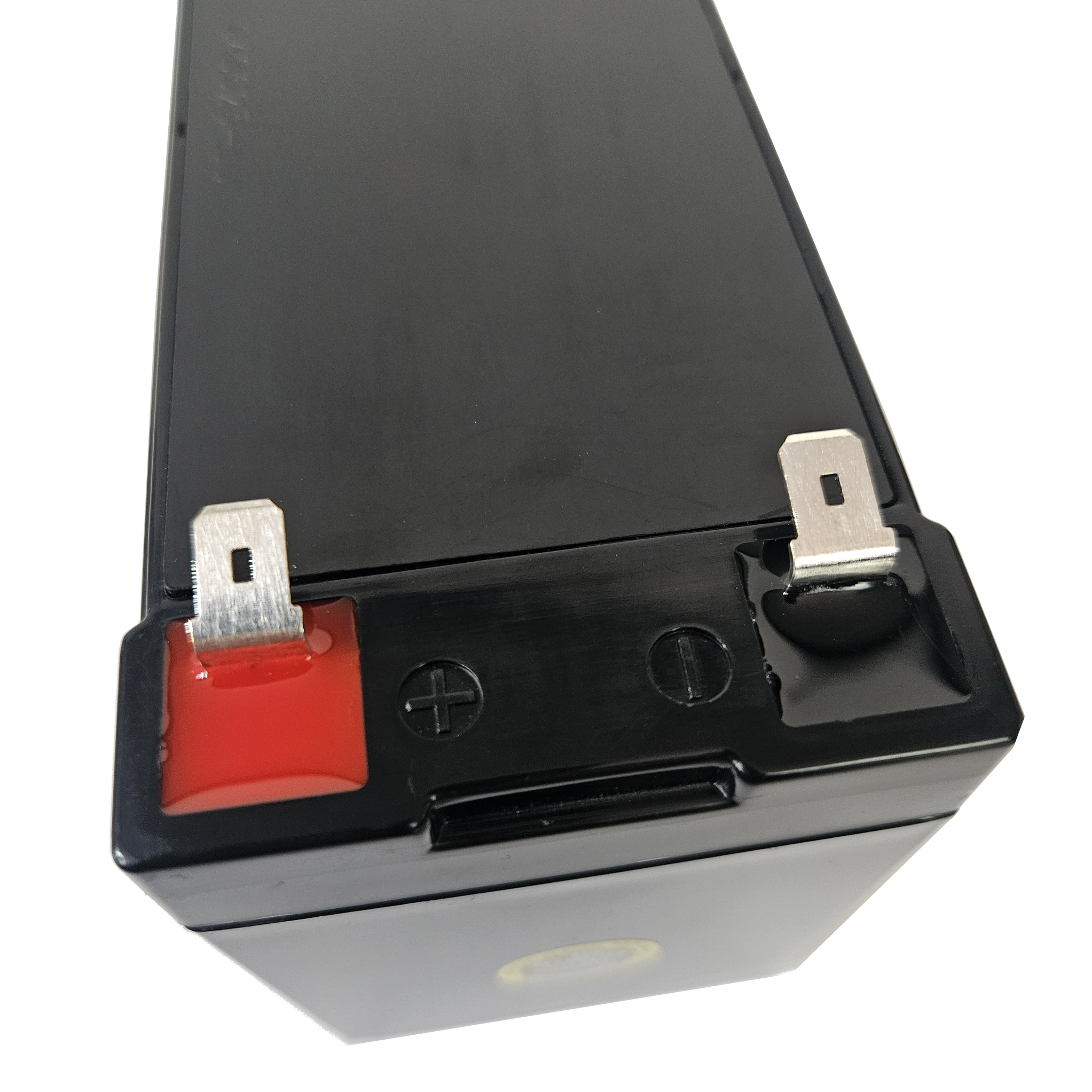

![Magnavolt SLA12-9 Battery T2 Terminals]()
![Magnavolt SLA12-9 Battery]()

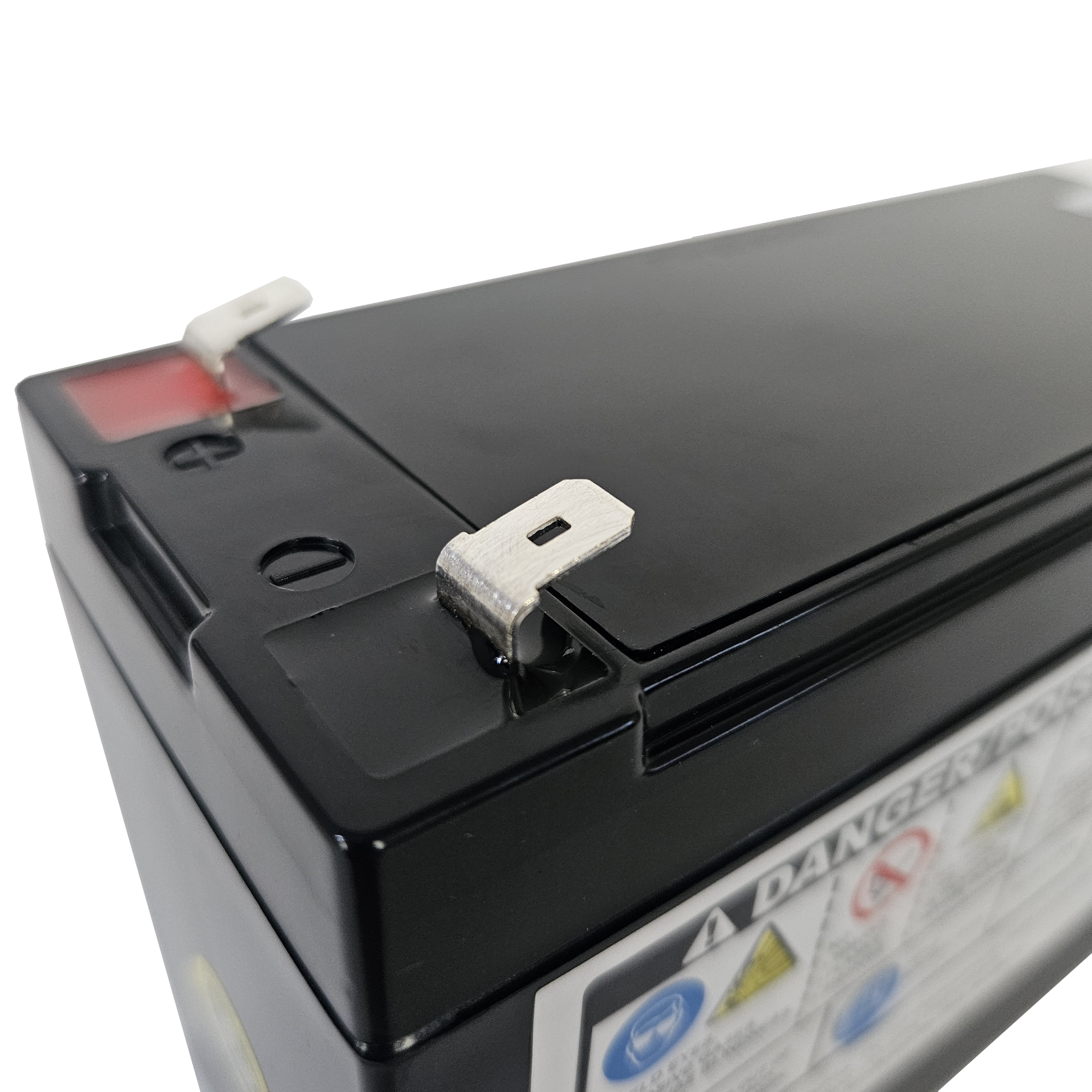

![Magnavolt SLA12-9 Battery Negative T2 Terminal]()

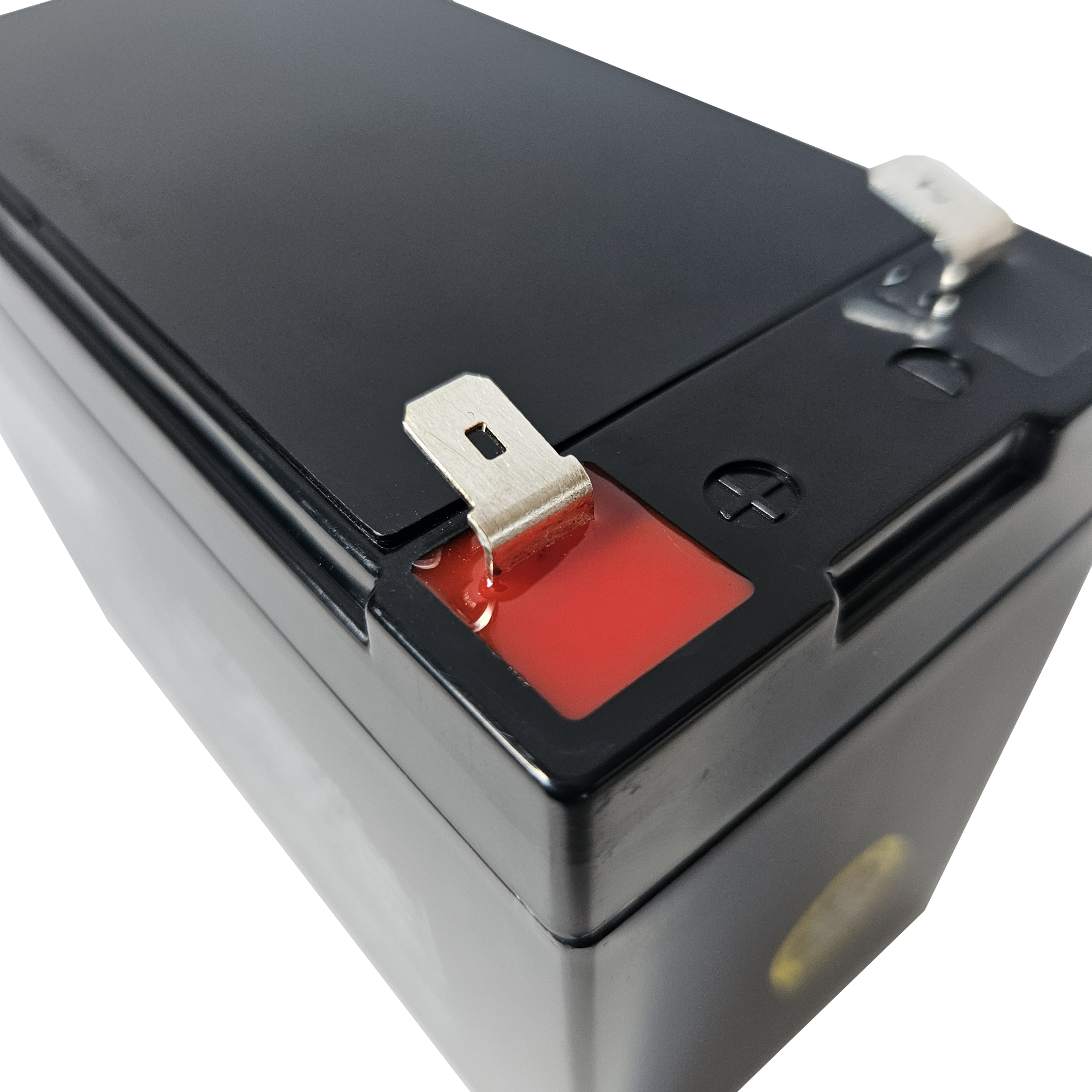

![Magnavolt SLA12-9 Battery Positive T2 Terminal]()
![Magnavolt SLA12-9 Battery]()
![Magnavolt SLA12-9 Battery]()
![Magnavolt SLA12-9 Battery Front]()
![Magnavolt SLA12-9 Battery T2 Terminals]()
![Magnavolt SLA12-9 Battery]()
![Magnavolt SLA12-9 Battery Negative T2 Terminal]()
![Magnavolt SLA12-9 Battery Positive T2 Terminal]()
![Magnavolt SLA12-9 Battery]()
Sale
Magnavolt Battery
SLA12-9 12V 9 Ah Sealed Lead Acid Battery
Voltage: 12V
Terminal Type: T2 - Quick Connect Tabs
Amp Hours @ 20hr: 9Ah
Dimensions LxWxH / in. (mm): 5.94 x 2.56 x 3.72 (150.87 x 65.02 x 94.48)
Height w/. Terminals in (mm): 3.94 (100.07)
Weight lb. (kg): 5.4 (2.45)
Warranty: 12 Month Replacement & 6 Month Cycling Applications
- Product SKU: MV1000581
Availability: In Stock
$39.99
$41.99
No Hidden Core Fees
Free Shipping Over $200
Same Day Pickup Available
Couldn't load pickup availability
Product Information
Pickup instructions
Shipping & returns
Recycle & save
We supply convenient pickup locations in all major cities across Canada within 20 km of the city center. Proceed to checkout to select a location near you.
We do not provide the full address online as our locations are exclusively for pickup and not for in-store shopping. Upon ordering, you will receive the address in a pickup confirmation email. To schedule a pickup or for further information, please contact us.
Canada Wide Pickup
Our pickup locations are in London, Mississauga, Kingston, Ottawa, Sudbury, Thunder Bay, Montreal, Sherbrooke, Lévis (Quebec City), Moncton, Vancouver (Delta), Kelowna, Prince George, Fort McMurray, Grand Prairie, Edmonton, Calgary, Saskatoon, Regina, Winnipeg and Halifax.
Pickup Availability
Our pickup locations are open Monday to Friday, 8am to 5pm and products are typically available for same day pickup, unless marked otherwise.
Picking Up Your Order
Our locations provide convenience with bay doors and a helpful staff to facilitate your pickup. Upon receiving your pickup confirmation email, we hold your product(s) for 5 business days and will have your order ready upon arrival during our regular business hours. Have your order confirmation email and a piece of ID ready and we will have your products loaded up and ready to go. Please note that our locations are for pickup only and do not install or remove batteries from vehicles.
We offer various shipping methods to accommodate your needs, including free business delivery, third-party shipping, free Canada wide shipping on orders over $200 and specialty carrier shipping to remote areas.
Free Shipping on Orders Over $200
We offer free shipping on orders over $200 for our Magnavolt SLA12-9 battery.
Free Business Delivery
We supply free business delivery within a 100-kilometer radius of our facilities located in all major cities in Canada, including London, Mississauga, Kingston, Ottawa, Sudbury, Thunder Bay, Montreal, Sherbrooke, Lévis (Quebec City), Moncton, Vancouver (Delta), Kelowna, Prince George, Fort McMurray, Grand Prairie, Edmonton, Calgary, Saskatoon, Regina, Winnipeg and Halifax. Contact us to setup an account and qualify today.
Returns, Refunds and Warranties
Voltloop offers a 30-day return policy on select items, as well as full refunds for orders cancelled prior to processing, which normally takes one day. In addition, our products are backed by industry-leading manufacturer warranties, which are noted on each product page. For additional information, please see our terms and conditions.
Specialty Carrier Shipping
We provide specialty carrier shipping for remote locations with our nationwide distribution system. We have access to carriers and distribution points to facilitate delivery to any location in Canada. Please contact a Voltloop representative to receive a quote and shipping schedule.
Third Party Delivery
We offer third-party delivery options through UPS, FedEx, Canada Post, and USPS for orders shipped to Canada. At checkout, delivery times and pricing are calculated automatically.
No hidden core fees, plus we give you money back to recycle your old battery. All of our pickup locations are registered recycling depots, so when you pick up your new battery, we can recycle your old one and give you money back.
Battery Exchange
Battery scrap values depend on current market prices and vary based on size and chemistry. Prices are determined on location and are not subtracted from the original sale price.
Batteries must be a minimum size to qualify for our money back program, with the approximate minimum size being a 35 lb. automotive battery. Please note that we do not remove or replace batteries in vehicles or equipment, and batteries must be removed before you proceed to our locations.
Magnavolt SLA12-9 Rechargeable Sealed Lead Acid Battery
The Magnavolt SLA12-9 is a dependable 12V 9Ah sealed lead-acid battery designed to meet the demanding requirements of equipment and devices for your business. It is a direct replacement battery for a wide range of applications, including Emergency Lighting, Electronic Apparatus, UPS, EPS, Mobility Devices, Medical Devices, Railway Signals, Communication Power Supply, Alarms, and Security Systems.
Built with ISO-certified components and fresh, ready-to-use stock, this maintenance-free battery guarantees consistent, reliable power for critical business equipment. Voltloop.ca supports your workflow with free shipping on orders over $200, fast Canada-wide delivery, and same-day pickup.
- Brand new fresh stock
- Charged and ready to use
- Maintenance free design
- 1 year replacement warranty
- ISO certified components
| Voltage | 12V |
| Terminal Type | T2 (Quick Connect Tabs) |
| Terminal Material | Copper with Silver Coating |
| Amps Hours @ 20hr | 9 |
| Amps Hours @ 10hr | 8.37 |
| Amps Hours @ 5hr | 7.65 |
| Amps Hours @ 1hr | 5.65 |
| Cycles @ 30% Depth of Discharge | 1200 Cycles |
| Cycles @ 50% Depth of Discharge | 500 Cycles |
| Cycles @ 100% Depth of Discharge | 300 Cycles |
| Capacity @ 3 Months of Storage (25 °C) | 91% |
| Capacity @ 6 Months of Storage (25 °C) | 82% |
| Capacity @ 12 Months of Storage (25 °C) | 65% |
| Dimensions LxWxH / in. (mm) | 5.94 x 2.56 x 3.72 (150.87 x 65.02 x 94.48) |
| Height w/ Terminals in. (mm) | 3.94 (100.07) |
| Terminal Dimensions LxW / in. (mm) | 0.313 x 0.25 (7.95 x 6.35) |
| Weight lb. (kg) | 5.4 (2.45) |
| Warranty | 12 Month Replacement & 6 Month Cycling Applications |
| Battery Type | AGM (Absorbent Glass Mat) / SLA (Sealed Lead Acid) |
| Certifications | ISO9002, UN2800, CE |
| Dangerous Goods Description | Class 8 UN2800 Batteries/Wet/Non-Spillable |
| Shipping Description | Not Resticted for any Transporation - IATA/ICAO Special Provision A67 |
| Replacement Codes | RBC17, 12V-9, NP9-12, PS1290, UB1290, ML9-12, BW1290, AJC-D9S, DUR12V-9, UB1290, TLV1290F2 |
| Common Applications | Emergency Lighting, Electronic Apparatus, UPS, EPS, Mobility, Medical Devices, Railway Signals, Communication Power Supply, Alarms, Security Systems |
| Condition | New |
| Country of Origin | China |
Magnavolt SLA12-9 battery has a 12 month replacement warranty & 6 month cycling applications warranty.
Product Questions
1. How long do Magnavolt SLA12-9 batteries last?
| Capacity Rate | 1-Hr | 5-Hr | 10-Hr | 20-Hr |
| Amps | 5.65 | 1.53 | 0.837 | 0.45 |
| Amp Hour | 5.65 | 7.65 | 8.37 | 9 |
For example, if your load is 0.45 amps, the battery would last approximately 20 hours, given its 9 amp-hour capacity.
Based on cycle service life in relation to depth of discharge with an ambient temperature of 25°C the Magnavolt SLA12-9 battery life span is as follows:- Cycles @ 30% Depth of Discharge= 1200 Cycles
- Cycles @ 50% Depth of Discharge= 500 Cycles
- Cycles @ 100% Depth of Discharge= 300 Cycles
- Capacity @ 3 Months of Storage (25 °C)= 91%
- Capacity @ 6 Months of Storage (25 °C)= 82%
- Capacity @ 12 Months of Storage (25 °C)= 65%
2. How much does a Magnavolt SLA12-9 battery weigh?
The Magnavolt SLA12-9 battery weighs 5.4 lbs. (2.45 kg).
3. Where are Magnavolt SLA12-9 batteries made?
Magnavolt SLA12-9 batteries are made in China.
Technical Questions
1. Do I need to top this battery up with distilled water?
No, this battery is an AGM maintenance free battery that does not require watering.
2. Do I need to charge this battery before use?
No, all of our batteries arrive fully charged and ready for immediate use.
3. Is this battery a starting or deep cycle battery?
This battery is deep cycle battery designed to run electronics and equipment for extended periods of time.
4. Do I need to vent this battery outside?
No, this battery is sealed and does not require external ventilation.
Logistical Questions
1. Can this battery be shipped?
Yes, this battery can be shipped, and orders over $200 qualify for free shipping. Please proceed to checkout to see the automatic shipping rates. We also offer free business shipping across Canada. To set up an account and arrange your delivery, please contact us directly.
2. Where can I pick up this battery?
We provide convenient pickup locations in all major Canadian cities, including London, Mississauga, Kingston, Ottawa, Sudbury, Thunder Bay, Montreal, Sherbrooke, Lévis (Quebec City), Moncton, Vancouver (Delta), Prince George, Kelowna, Fort McMurray, Grand Prairie, Edmonton, Calgary, Saskatoon, Regina, Winnipeg, and Halifax.
3. When can I pick up this battery?
This battery is available for same-day pickup. Need a different time? We’re happy to coordinate a convenient pickup that fits your schedule during our business hours, Monday through Friday, 8 AM to 5 PM local time. Plus, if you need a little extra time, we’ll hold your order for up to 5 business days.
4. Do you charge a core fee for this battery?
Our prices are transparent with no hidden core fees.
5. What do I do if I need to warranty my battery?
To initiate your warranty process, simply contact Voltloop—just have your invoice or order number handy. We handle all warranties in-house, giving you the flexibility to drop off your item, schedule a pickup, or ship it to any of our locations across Canada. Our team will test your product according to manufacturer standards to diagnose the issue. Once testing is complete, we'll reach out with the results and guide you through the next steps.
For more information, please visit our FAQ Page.
Magnavolt SLA12-9 Specification Charts
